CRYOGENIC SEALS

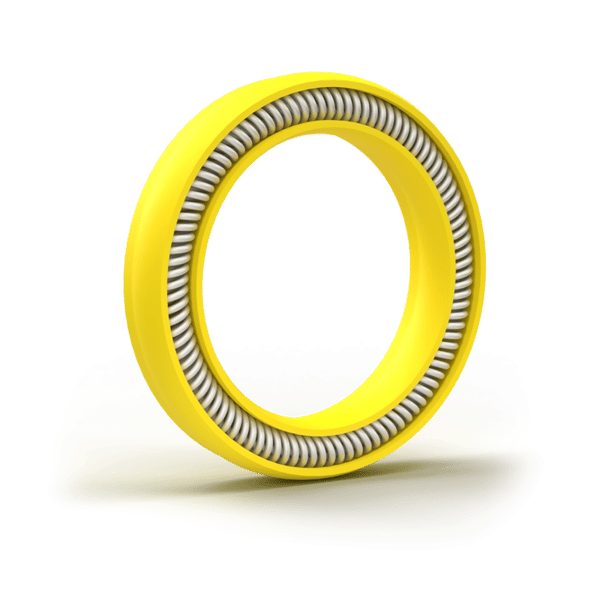

Polymer-Concepts-600-Series-Canted-Coil-Spring_-_Copy-85b5c92e

What are Cryogenic Seals?

Cryogenic seals provide sealing solutions for materials being held at cryogenic temperatures, typically with temperatures ranging from -238°F (-150°C) to temperatures as low as -460°F (273°C) . Cryogenic seals are used in many applications and industries including industrial, medical devices, life sciences, space, oil and gas, and more.

How Do Cryogenic Seals Work?

Cryogenic seals’ manufacturing maintains minimal gaps between spring energizer coils. This tight spacing provides continuous load, reducing leak paths. This tight spacing, combined with high unit spring energizer load, makes these seals ideally suited for cryogenic applications.

Considerations for Effective Sealing of Cryogenic Seals

Sealing cryogenic temperatures has unique challenges with many factors influencing seal performance. Considerations are needed for hardware materials and surface finish. Polymer Concepts offers different spring energized seal solutions with choices of seal designs, jacket materials, and spring energizers. The goal is to meet critical leakage rate and seal life requirements.

Cryogenic Seal Materials

Cryogenic seals are available in materials that offer enhanced benefits to meet your particular needs and application. The common materials for cryogenic seals include:

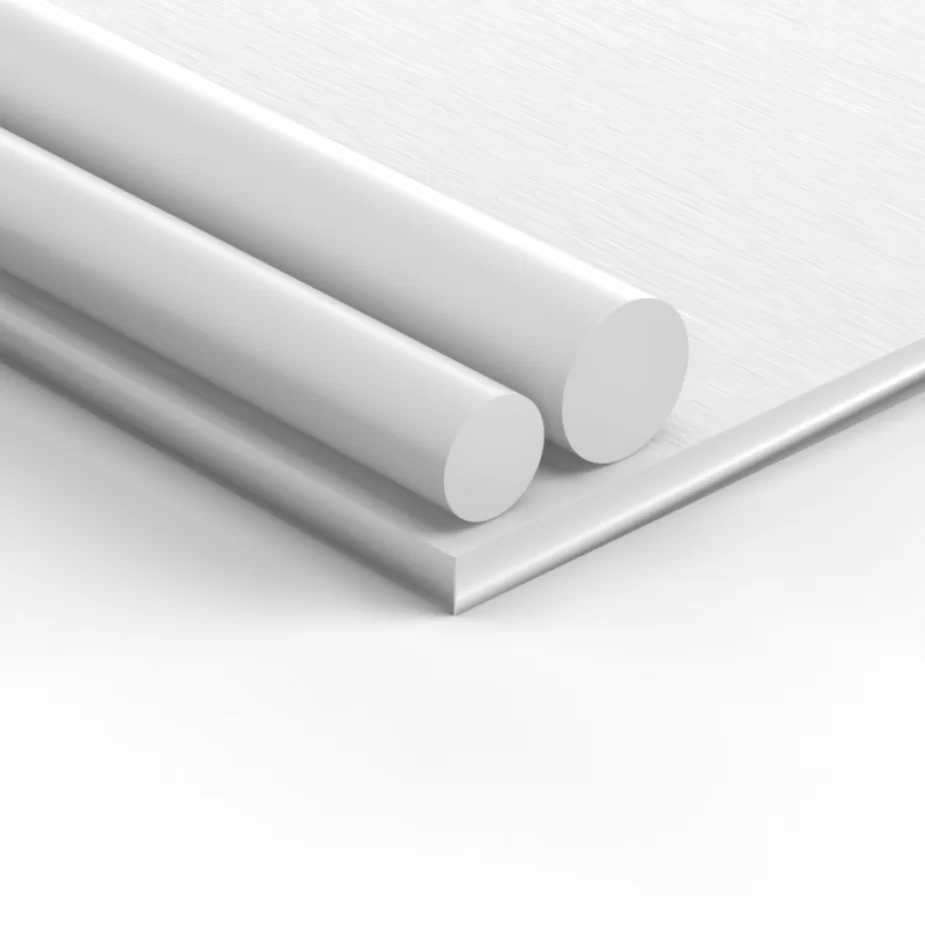

Virgin-PTFE-ff6313d5

Virgin PTFE

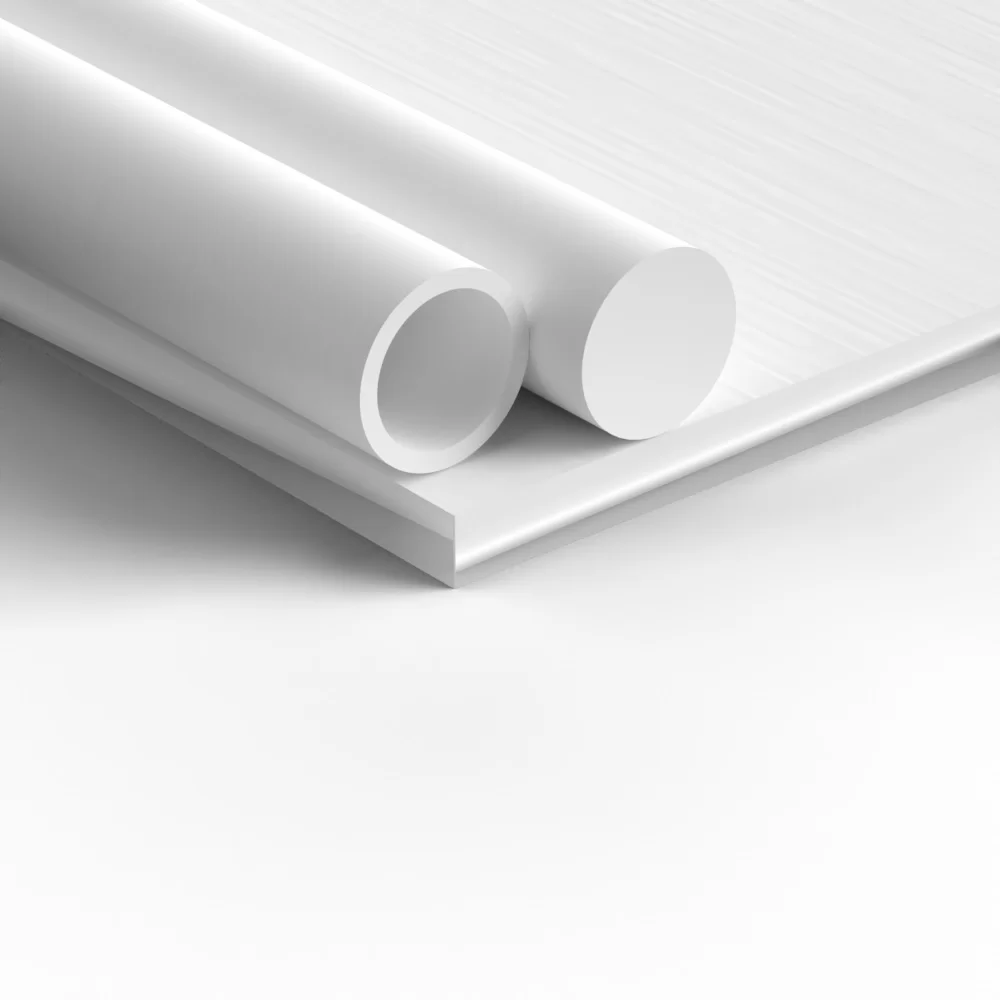

MOD-PTFE

Modified PTFE

Cryogenic Seal Designs

Cryogenic temperatures (80K) cause polymers to shrink and become hard, brittle and stiff. Various seal designs can be proposed with different sealing lip profiles depending on the hardware, operating conditions, and other specific requirements. Typically, high spring loads are used for cryogenic applications to overcome material coefficient of thermal expansion (CTE) and provide improved sealing.  It is very important that seals meet very low leakage requirements.  Seals which exceed the leakage requirement can scrub or delay a launch which was experienced in 2022 SLS Program. Reliability is very important, as these seals are experiencing more seals than in the past as the industry transitions to multiple reusable launch systems.

Face Seals

Face seals are normally designed for static or slow rotary use with internal or external. Virgin PTFE and/or Modified PTFE are typically used due to outstanding cryogenic properties. Our high force helical spring is used for improved sealability.

Radial Seals

Radial seals are designed for static or dynamic use. In dynamic use, the spring force needs to be determined for the right combination of friction and sealability. Surface finish and seal jacket material choice are important for control of friction and seal wear.

Custom Profile Seals

Custom seal profiles are designed for static or dynamic use. Custom profile geometry for ball valves, check valves, or other products. Fully contained seal designs, anti-blowout, or added features using metal components will help control shrinkage and friction.

Energizers

Our helical spring is normally used for high spring force. Depending on leakage performance requirements, V-spring or full contact spring can be used. Elgiloy® material is commonly used, which has a unique combination of very high mechanical properties at cryogenic temps with excellent corrosion and fatigue resistance.

Cleaning

We can provide cleaning service from using Simple Green to the industry LOX IEST-STD.

Polymer Concept's Cryogenic Seals

Cryogenic Seal Applications

Cryogenic seals are an ideal choice for sealing applications across a variety of industries, including:

Industrial

  • Cryogenic Systems
  • Food Processing Pumps
  • Food processing Valves

Medical Device & Life Sciences

  • LN2 storage equipment
  • Valves

Aerospace

  • Cryogenic Valves
  • Transfer lines
  • Tanks
  • Quick disconnects
  • Pumps

Oil & Gas

  • Pumps
  • Valves
  • Transfer Lines
  • Loading Arms
